In this lecture we will explore how PostgreSQL indexes work and how we build indexes for large text fields that contain natural language and how we can look into those fields and use indexes to search large text fields efficiently.
Additional Materials
Rows can vary quite a bit in terms of length.
CREATE TABLE messages
(id SERIAL, -- 4 bytes
email TEXT, -- 10-20 bytes
sent_at TIMESTAMPTZ, -- 8 bytes
subject TEXT, -- 10-100 bytes
headers TEXT, -- 500-1000 bytes
body TEXT -- 50-2000 bytes
-- 600-2500 bytes
);

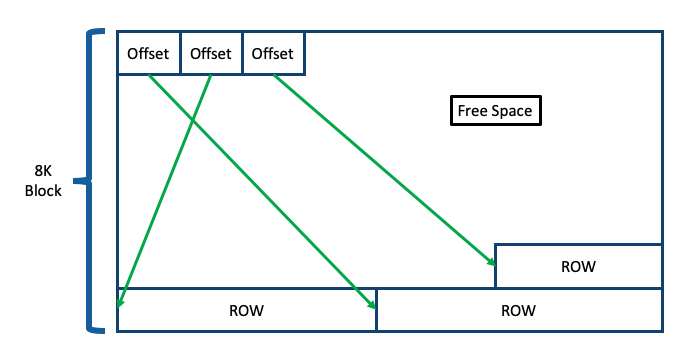

Since modifying data is so important to databases, we don't pack store one row after another in a file. We arrange the file into blocks (default 8K) and pack the rows into blocks leaving some free space to make inserts updates, or deletes possible without needing to rewrite a large file to move things up or down.
PostgreSQL Organizes Rows into Blocks
What is the Best Block Size?
If we have a table that contains 1GB (125,000 blocks) of data, a sequential scan from a fast SSD takes about 2 seconds while with careful optimization, reading a random block can be fast as 1/50000th of a second. Some SSD drives can read as many as 32 different random blocks in a single read request. If the block is already cached in memory it is even faster. Sequential scans are very bad.
ReferencesAssume each row in the users table is about 1K, we could save a lot of time if somehow we had a hint about which row was in which block.
email | block -------------------+------ anthony@umich.edu | 20175 csev@umich.edu | 14242 colleen@umich.edu | 21456 SELECT name FROM users WHERE email='csev@umich.edu'; SELECT name FROM users WHERE email='colleen@umich.edu'; SELECT name FROM users WHERE email='anthony@umich.edu';Our index would be about 30 bytes per row which is much smaller than the actual row data. We store index data in 8K blocks as well - as indexes grow in size we need to find was to avoid reading the entire index to look up one key. We need an index to the index. For string logical keys, a B-Tree index is a good, general solution. B-Trees keep the keys in sorted order by reorganizing the tree as keys are inserted.
PostgreSQL Index Types
It is not a perfect metaphor but in general there are two categories of indexes:

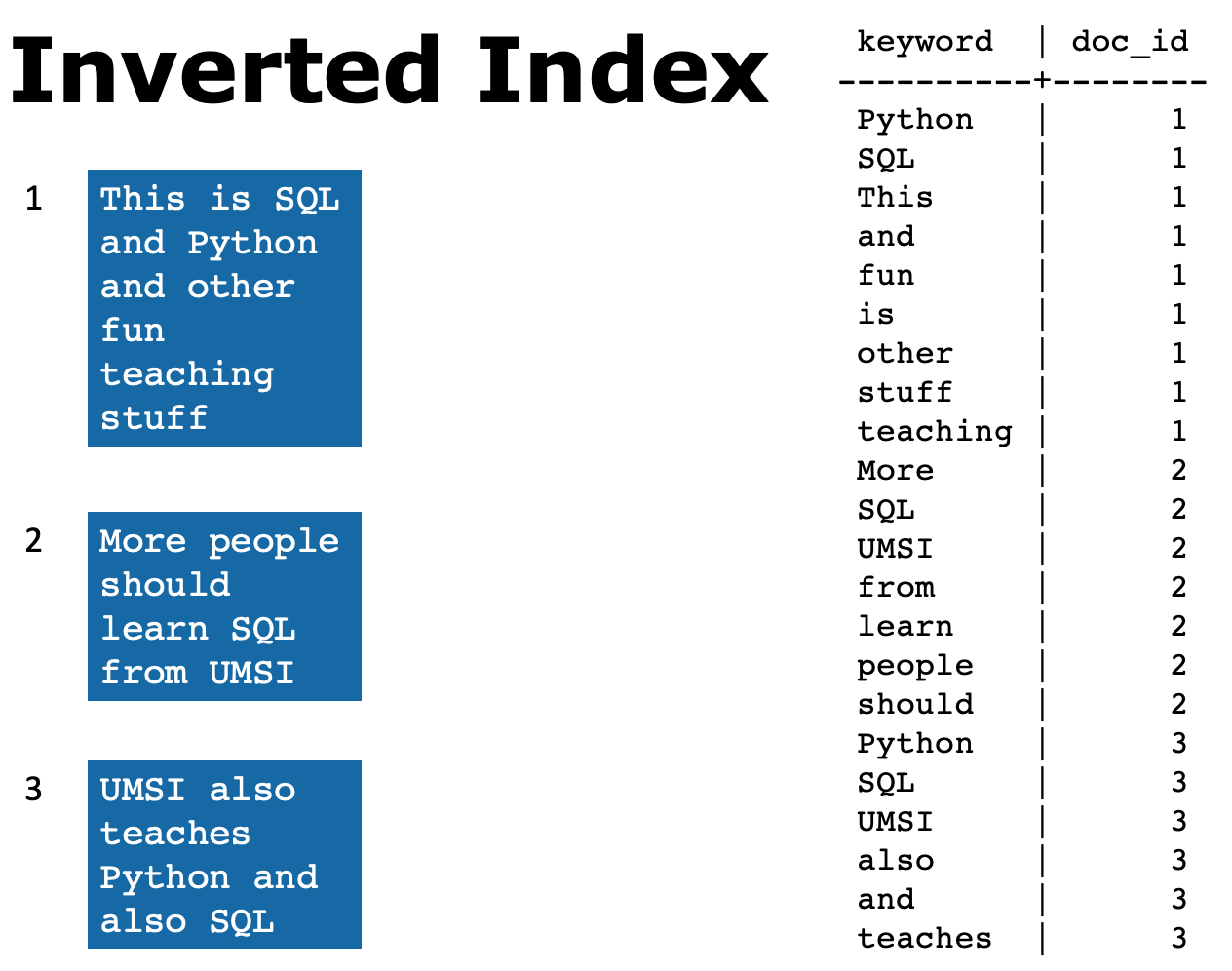

The most typical use case for an inverse index is to quickly search text documents wit one or a few words.
References
We can split long text columns into space-delimited words using PostgreSQL's split-like function called string_to_array(). And then we can use the PostgresSQL unnest() function to turn the resulting array into separate rows.
pg4e=> string_to_array('Hello world', ' ');
string_to_array
-----------------
{Hello,world}
pg4e=> unnest(string_to_array('Hello world', ' '));
unnest
--------
Hello
world
After that, it is just a few SELECT DISTINCT statements and we can create and use an inverted index.
CREATE TABLE docs (id SERIAL, doc TEXT, PRIMARY KEY(id));
INSERT INTO docs (doc) VALUES
('This is SQL and Python and other fun teaching stuff'),
('More people should learn SQL from UMSI'),
('UMSI also teaches Python and also SQL');
CREATE TABLE docs_gin (
keyword TEXT,
doc_id INTEGER REFERENCES docs(id) ON DELETE CASCADE
);
...
pg4e=> select * from docs_gin;
keyword | doc_id
----------+--------
Python | 1
SQL | 1
This | 1
stuff | 1
teaching | 1
More | 2
SQL | 2
UMSI | 2
from | 2
learn | 2
people | 2
should | 2
Python | 3
SQL | 3
UMSI | 3
also | 3
and | 3
teaches | 3
(22 rows)
References
GIN indexes are the preferred text search index type. Advantages: exact matches, efficient on lookup/search. Disadvantages: can be costly when inserting or updating data because every new word is inserted somewhere in the index and can get large. Like the B-Tree, the GIN is the usual "go-to" inverted index and GiST is used in more special cases. The previous example was a rough approximation of a GIN index.
Hashing is used to reduce the size of and cost to update the GiST. A GiST index is lossy, meaning that the index might produce false matches, and it is necessary to check the actual table row to eliminate such false matches. (PostgreSQL does this automatically when needed.) The indexes have equivalent functionality and will return the same rows - but there may be performance / storage tradeoffs between GIN and GiST.
Both GIN and GiST want to know something about the type of array data it will be indexing and the kinds of operations that we will be using in WHERE clauses. In the example below we are indexing arrays of strings (i.e. text[]) and will be using the "<@" operator (contained within).
We can build a simple GIN index like the manual index above:
CREATE TABLE docs (id SERIAL, doc TEXT, PRIMARY KEY(id));
CREATE INDEX gin1 ON docs USING gin(string_to_array(doc, ' ') array_ops);
INSERT INTO docs (doc) VALUES
('This is SQL and Python and other fun teaching stuff'),
('More people should learn SQL from UMSI'),
('UMSI also teaches Python and also SQL');
The <@ is looking for an intersection between two arrays
SELECT id, doc FROM docs WHERE '{learn}' <@ string_to_array(doc, ' ');
id | doc
----+----------------------------------------
2 | More people should learn SQL from UMSI
EXPLAIN SELECT id, doc FROM docs WHERE '{learn}' <@ string_to_array(doc, ' ');
QUERY PLAN
----------------------------------------------------------------------------
Bitmap Heap Scan on docs (cost=12.05..21.53 rows=6 width=32)
Recheck Cond: ('{learn}'::text[] <@ string_to_array(doc, ' '::text))
-> Bitmap Index Scan on gin1 (cost=0.00..12.05 rows=6 width=0)
Index Cond: ('{learn}'::text[] <@ string_to_array(doc, ' '::text))
References
To take advantage of the "naruralness" of natural language, we need to ignore words that convey no meaning and consistently reduce variations of words with equivalent meanings down to a single "stem word".
Recall this failure
SELECT DISTINCT id, doc FROM docs AS D
JOIN docs_gin AS G ON D.id = G.doc_id
WHERE G.keyword = ANY(string_to_array('Search for Lemons and Neons', ' '));
id | doc
----+-----------------------------------------------------
1 | This is SQL and Python and other fun teaching stuff
3 | UMSI also teaches Python and also SQL

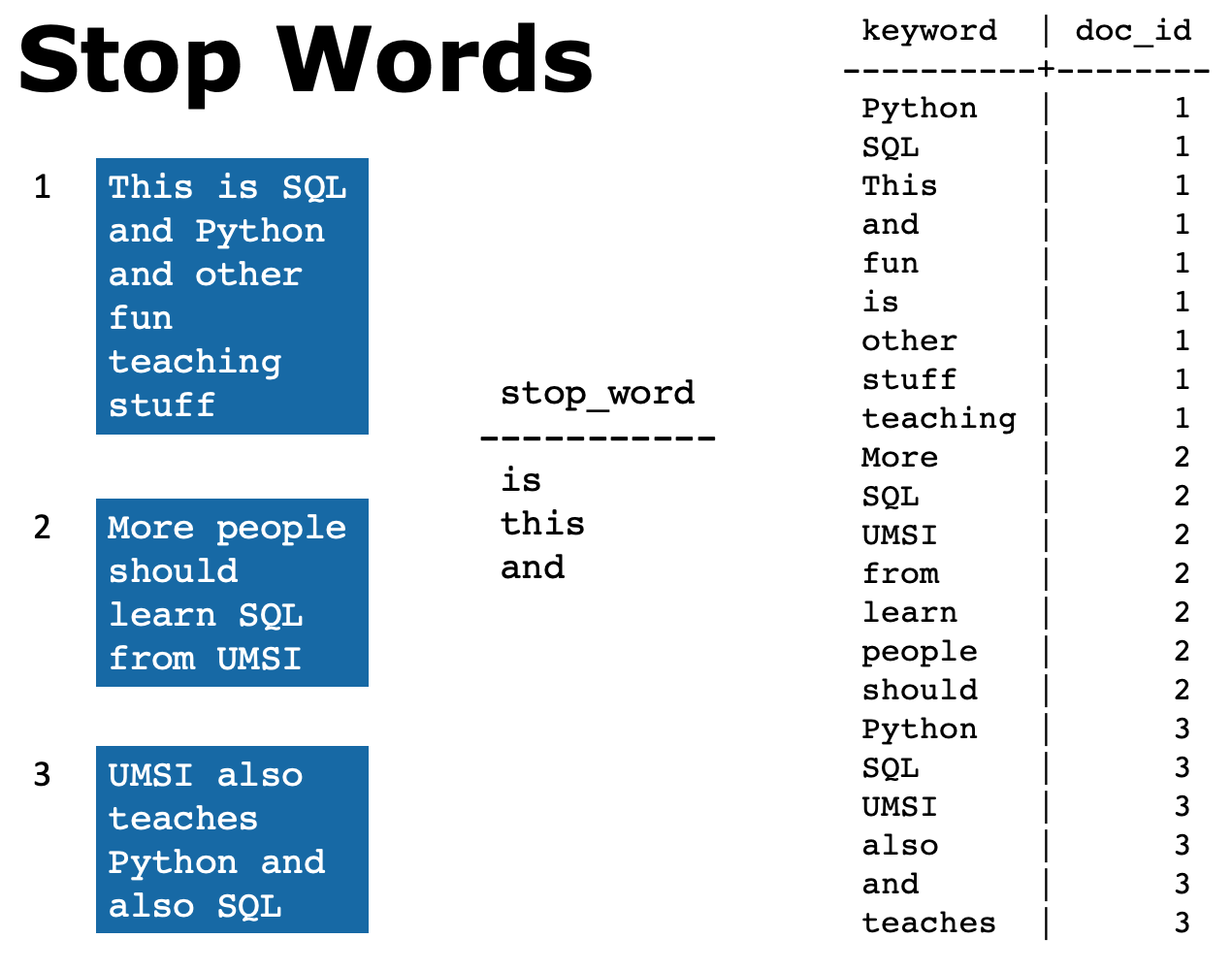

The word "and" contributed no real meaning to our query. And it took up valuable space in our GIN
index. So we put it on the
stop word list.
Lets implement stop word and
stemming capabilities
by hand and then just use PostgreSQL features to build a natural language search.
SELECT * FROM stop_words; word ------ is this and SELECT * FROM docs_stem; word | stem ----------+------- teaching | teach teaches | teach ... SELECT * FROM docs_gin; keyword | doc_id ---------+-------- also | 3 from | 2 fun | 1 learn | 2 more | 2 other | 1 people | 2 python | 1 python | 3 should | 2 sql | 3 sql | 1 sql | 2 stuff | 1 teach | 3 teach | 1 this | 1 umsi | 2 umsi | 3 (19 rows)
Stemming and stop words (and the meaning of "meaning") depend on which language is stored in the text column. The default install of PostgreSQL knows the rules for a few languages and more can be installed:
SELECT cfgname FROM pg_ts_config; cfgname ------------ simple danish dutch english finnish french german hungarian italian norwegian portuguese romanian russian spanish swedish turkish (16 rows)
PostgreSQL provides some functions that turn a text document/string into an "array" with stemming, stop words, and other language-oriented features.
ts_vector() returns a list of words that represent the document. ts_query() returns a list of words with operators to representaions various logical combinations of words much like Google's Advanced Search.
SELECT to_tsvector('english', 'UMSI also teaches Python and also SQL');
to_tsvector
--------------------------------------------------
'also':2,6 'python':4 'sql':7 'teach':3 'umsi':1
SELECT to_tsquery('english', 'teaching');
to_tsquery
------------
'teach'
In a WHERE clause we use the @@ operator to ask is a ts_query matches a ts_vector.
SELECT to_tsquery('english', 'teaching') @@
to_tsvector('english', 'UMSI also teaches Python and also SQL');
?column?
----------
t
References
As you might expect, letting PostgreSQL do all the work is the easy part. Stop words and stems are all handled in the "ts_" functions. And the GIN knows what operations you will be using automatically when you pass in a ts_vector.
CREATE TABLE docs (id SERIAL, doc TEXT, PRIMARY KEY(id));
CREATE INDEX gin1 ON docs USING gin(to_tsvector('english', doc));
INSERT INTO docs (doc) VALUES
('This is SQL and Python and other fun teaching stuff'),
('More people should learn SQL from UMSI'),
('UMSI also teaches Python and also SQL');
SELECT id, doc FROM docs WHERE
to_tsquery('english', 'learn') @@ to_tsvector('english', doc);
id | doc
----+----------------------------------------
2 | More people should learn SQL from UMSI
EXPLAIN SELECT id, doc FROM docs WHERE
to_tsquery('english', 'learn') @@ to_tsvector('english', doc);
QUERY PLAN
--------------------------------------------------------------------------------------
Bitmap Heap Scan on docs (cost=12.05..23.02 rows=6 width=36)
Recheck Cond: ('''learn'''::tsquery @@ to_tsvector('english'::regconfig, doc))
-> Bitmap Index Scan on gin1 (cost=0.00..12.05 rows=6 width=0)
Index Cond: ('''learn'''::tsquery @@ to_tsvector('english'::regconfig, doc))
References
You can ask PostgreSQL the different index / WHERE clause operator combinations it supports. There are quite a few and they can change from one PostgreSQL version to another.
SELECT am.amname AS index_method, opc.opcname AS opclass_name
FROM pg_am am, pg_opclass opc
WHERE opc.opcmethod = am.oid
ORDER BY index_method, opclass_name;
index_method | opclass_name
--------------+------------------------
brin | abstime_minmax_ops
brin | bit_minmax_ops
brin | box_inclusion_ops
...
brin | uuid_minmax_ops
brin | varbit_minmax_ops
btree | abstime_ops
btree | array_ops
...
btree | varbit_ops
btree | varchar_ops
btree | varchar_pattern_ops
gin | array_ops
gin | jsonb_ops
gin | jsonb_path_ops
gin | tsvector_ops
gist | box_ops
gist | circle_ops
...
gist | tsvector_ops
hash | abstime_ops
hash | aclitem_ops
hash | array_ops
...
hash | varchar_pattern_ops
hash | xid_ops
spgist | box_ops
spgist | inet_ops
spgist | kd_point_ops
spgist | poly_ops
spgist | quad_point_ops
spgist | range_ops
(134 rows)
